Priefert Cattle Guards

Model # CAT1012
Manufactured by Priefert
$3,733.00 - $8,545.00
$3,733.00
$3,733.00 - $8,545.00
$3,733.00

Authorized Dealer

Iron Herd is an authorized Priefert dealer, ensuring quality and full manufacturer support.

Length: 12' - 1 1/16'

Freight Shipping

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (302) 272-9814

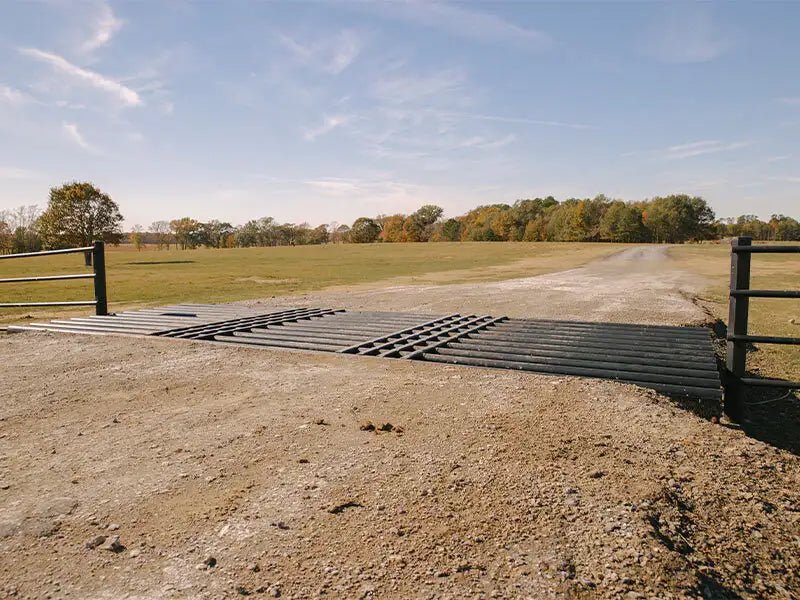

Priefert’s Cattle Guards are designed to be placed in fence lines in place of a gate to allow for easy drive thru access while still safely containing cattle. These “set-in-place” cattle guards require no concrete footing for installation and are cambered to better match the crown of most roads. With a variety of size options in our Medium and Heavy Duty models, Priefert Cattle Guards are able to handle multiple load ranges and diverse applications.

FEATURES

    • Priefert Cattle Guards adhere to AASHTO guidelines.

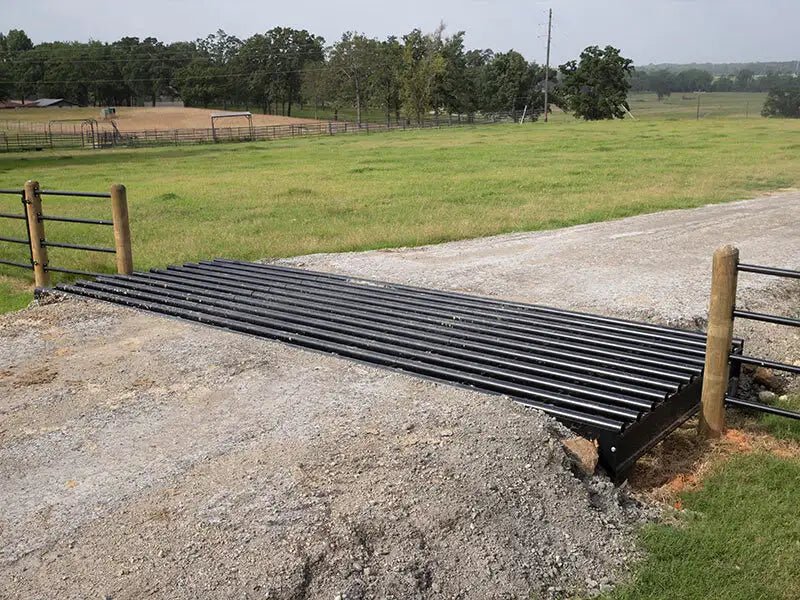

    • No concrete footing is required for installation.
    • Priefert cattle guards are built with a camber to better match the crown of most roads. *Cambered installations need matching cambered ground preparation

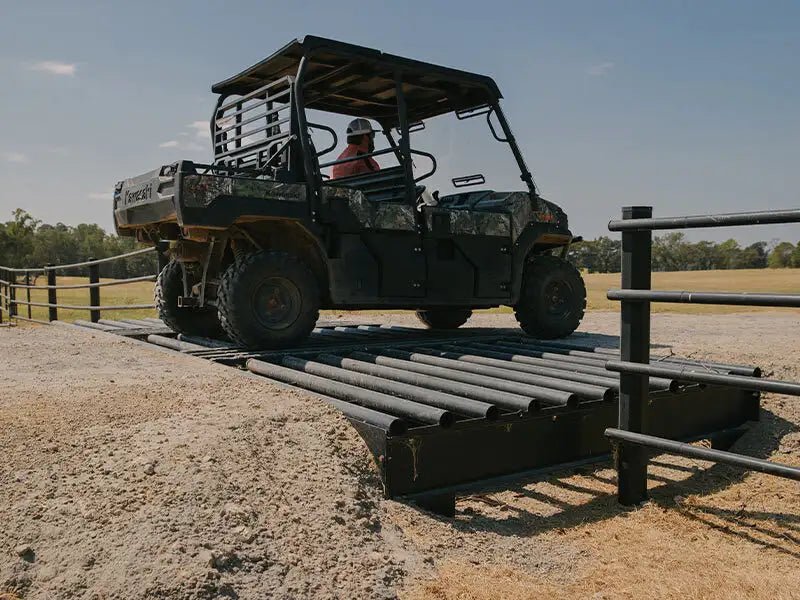

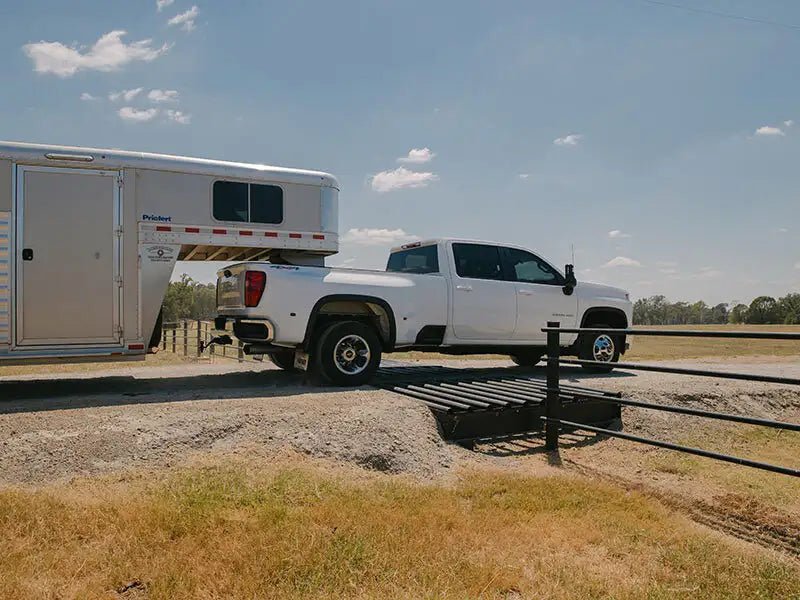

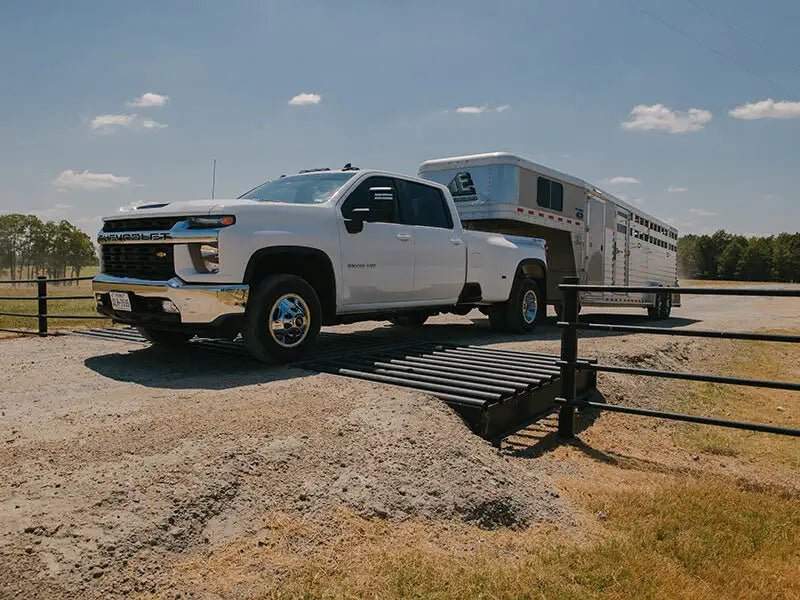

    • This set-in-place Cattle Guard is ideal for agriculture operations in need of containing livestock without impeding road travel.

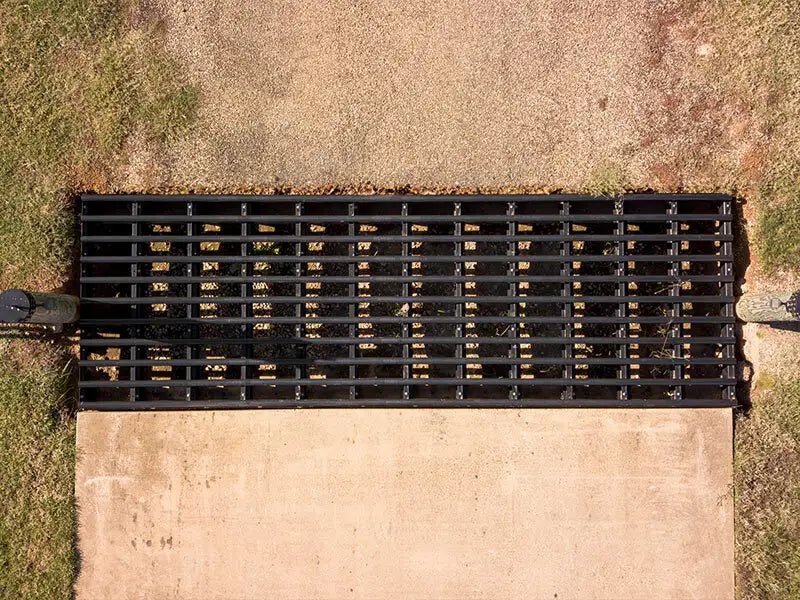

    • Metal skirting along the sides of the guard help prevent fill dirt from falling into the open space below the guard. Open ends allow for water drainage.
    • 6-1/8 Rail Spacing

    SPECIFICATIONS

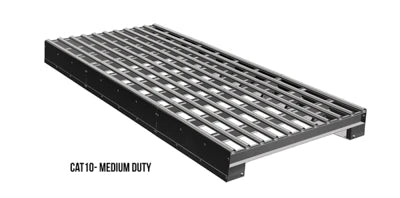

    • CAT10 Maximum single axle weight: 16,000# (4’ Spacing)
    • CAT93 Maximum single axle weight: 32,000# (4’ Spacing)
    • CAT10 Maximum tandem axle weight: 17,000# per axle (4’ Spacing)
    • CAT93 Maximum tandem axle weight: 25,000# per axle (4’ Spacing)
    Item Width Length Height Camber Rise Weight
    CAT1012 8'-1 1/16" 12'-1 1/16" 21-1/16" 1-1/4" 1,838 lb
    CAT1014 9'-1 1/16" 14'-1 1/16" 21-1/4" 1-7/16" 2,123 lb
    CAT1016 9'-1 1/16" 16'-1 1/16" 21-1/2" 1-11/16" 2,403 lb
    CAT1018 9'-1 1/16" 18'-1 1/16" 22-5/16" 2-1/2" 2,731 lb
    CAT1020 9'-1 5/16" 20'-1 5/16" 22-5/16" 2-1/2" 3,016 lb
    CAT1022 9'-1 5/16" 22'-1 5/16" 23-1/8" 3" 3,264 lb
    CAT1024 9'-1 5/16" 24'-1 5/16" 23-1/8" 3-5/8" 3,516 lb
    CAT9312 9'-3/16" 12'-1 1/16" 22-3/4" 1-1/4" 2,355 lb
    CAT9314 9'-3/16" 14'-1 1/16" 22-3/4" 1-5/8" 2,636 lb
    CAT9316 9'-3/16" 16'-1 1/16" 22-5/8" 2-1/8" 2,917 lb
    CAT9318 9'-3/16" 18'-1 1/16" 23" 2-5/8" 3,647 lb
    CAT9320 9'-3/16" 20'-1 1/16" 23-7/16" 3-1/16" 4,134 lb
    CAT9322 9'-3/16" 22'-1 1/16" 24-5/16" 3-5/16" 4,407 lb
    CAT9324 9'-3/16" 24'-1 1/16" 24-5/16" 3-5/16" 4,935 lb

    SHIPPING & SUPPORT

    This product ships directly from Priefert U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

    Have questions or need help choosing the right model and accessories?
    Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
