The 10ft Powder Coated Panel with Man Gate is a durable and versatile addition to any livestock handling system, calving barn, show pen, or horse round yard. This heavy-duty panel features 6 diamond bar rails, each 1.5” square turned on a 45 degree angle, creating a clear barrier for animals. The panel’s end posts and frame are constructed from 2”x2” square tubing, capped at both the top and bottom for added strength and durability.

The panel is powder-coated in green, providing excellent rust resistance and ensuring a long service life. Double pin clips/brackets are located at both ends, top and bottom, for secure attachment. The panel also includes a 4ft man gate for easy access. Weighing approximately 160 lbs and equipped with two solid rod connecting pins, this panel is easy to move and set up for various applications.

FEATURES & SPECS

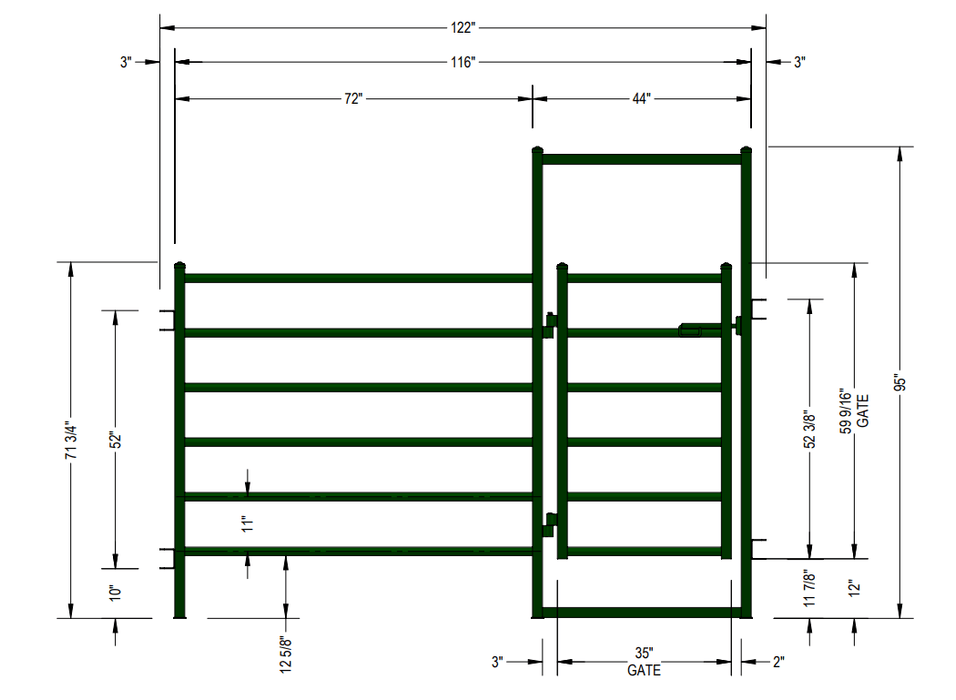

• Heavy Duty 10ft long Panel with 4ft man gate

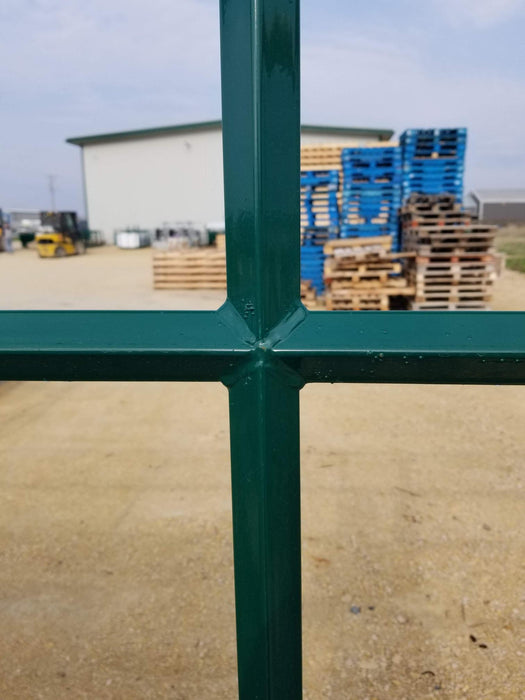

• 6 Diamond Bar Rails – Rail is approx 1.5” square turned on a 45 degree angle (Animal sees them as a barrier!)
• End posts and Frame are 2”x2” square tube, capped top & bottom
• Powder Coated Finish (Green)-to resist rust and maximize longer life!
• Double Pin Clips/Brackets both ends, top & bottom
• Weighs approx 160lbs
• 2x solid rod connecting pins included
• Easy to move around and setup for your complete cattle handling system, calving barns, show penning, horse round yards and much more!
• 14gu. Oval Rails, 12gu. End Posts

SHIPPING & SUPPORT

This product ships directly from Lakeland Farm and Ranch U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and accessories?
Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
