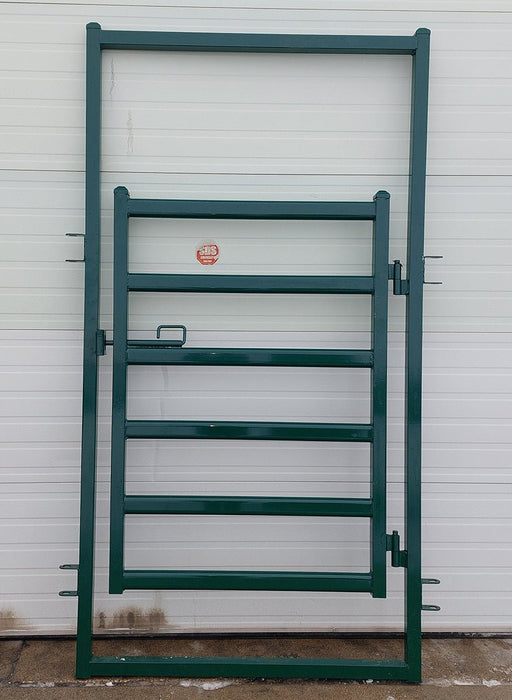

The 4ft Powder Coated Man Gate (Gate in Frame) is a durable and versatile accessory designed for easy access within cattle handling systems, calving barns, horse round yards, and more. This heavy-duty man gate is 4 feet wide and comes in an 8-foot high frame, built with 2”x2” square tube end posts and capped top and bottom for extra strength. Featuring 6 oval rails that are approximately 2” wide x 3” high, the gate is designed as a clear barrier to livestock. The gate also includes a slam latch for secure closure and double pin clips/brackets on both ends for easy installation. Constructed with 14-gauge oval rails and 12-gauge end posts, the gate is built to last, with a powder-coated green finish that resists rust and ensures longevity. Weighing 106 lbs, it is easy to move and set up, making it a reliable component for your complete cattle handling system.

FEATURES

• Heavy Duty 4ft wide Man Gate in 8ft high frame

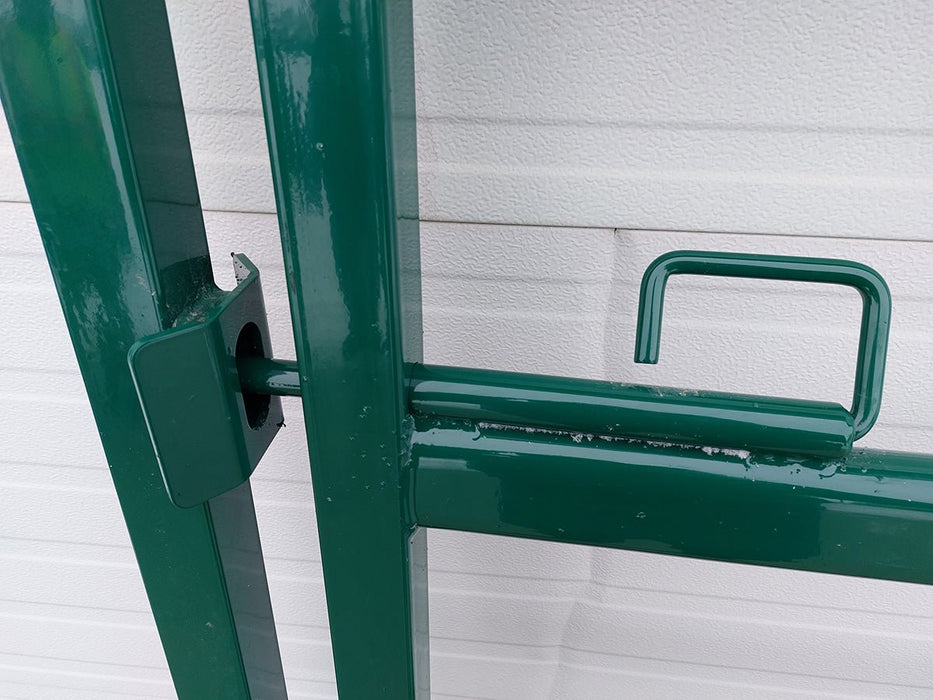

• Slam latch included

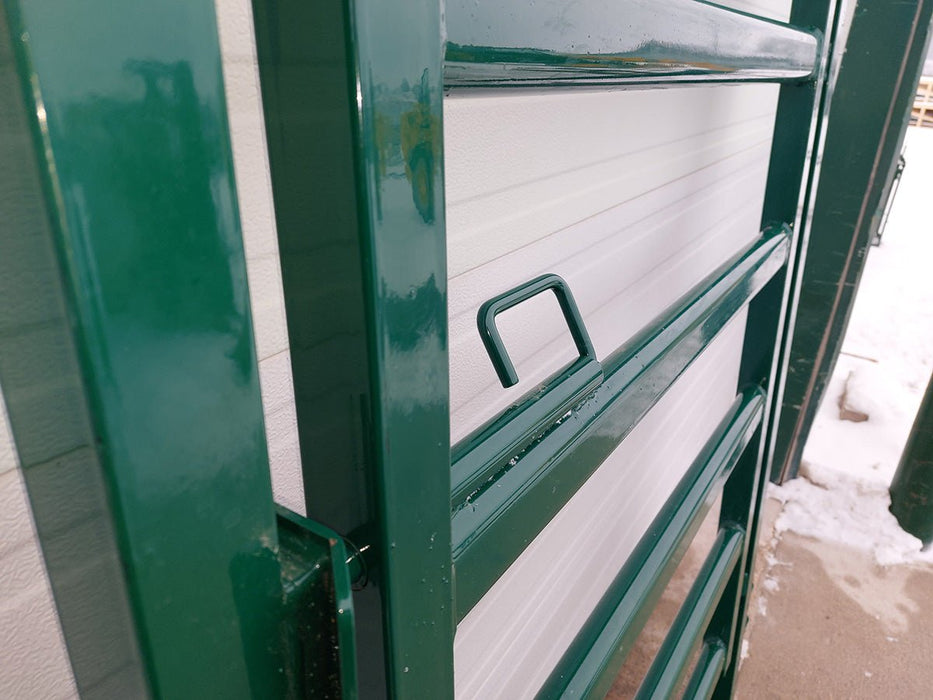

• 6 Diamond Bar Rails on Gate- Rail is approx 2” wide x 3” high-Animal sees them as a barrier!
• End posts and Frame are 2”x2” square tube, capped top & bottom
• 14 gauge Diamond Bar Rails, 12 gauge End Posts
• Powder Coated Finish (Green)-to resist rust and maximize longer life!

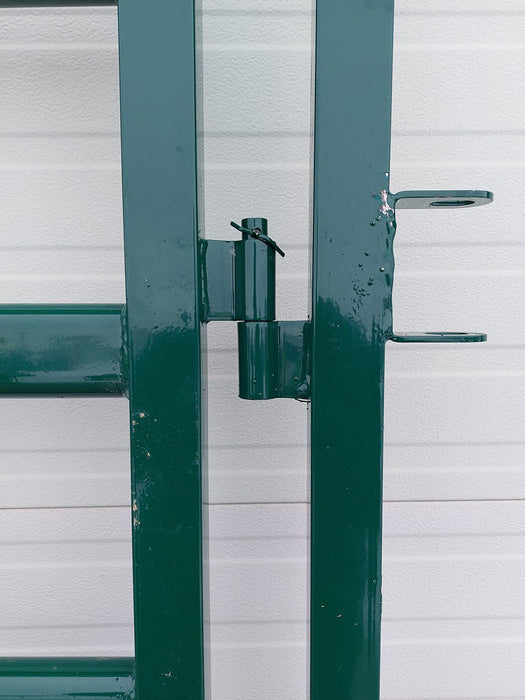

• Double Pin Clips/Brackets both ends, top & bottom
• Man Gate weighs 106lbs
• 2x solid rod connecting pins included per gate
• Easy to move around and setup for your complete cattle handling system, calving barns, show penning, horse round yards and much more!

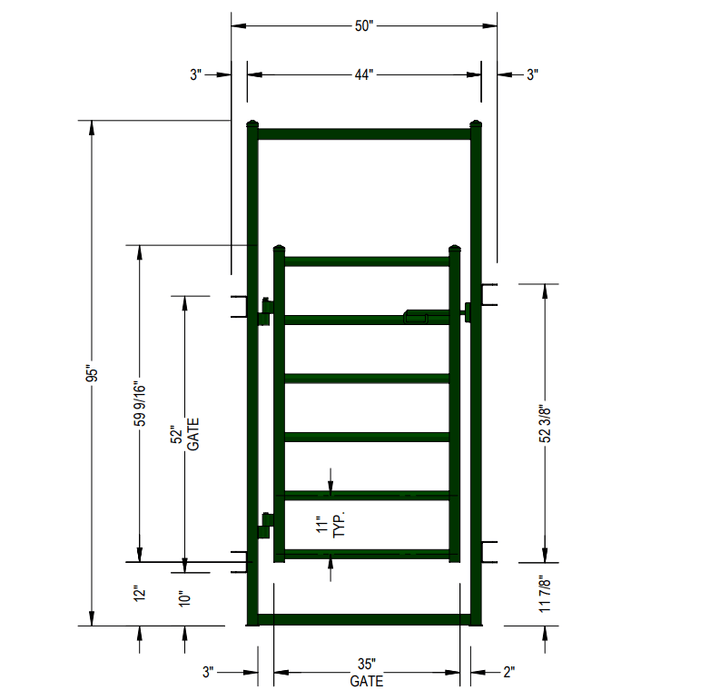

SPECIFICATIONS

Dimensions:

• 49.5″ outside of frame to outside of frame
• 55.5″ overall width (including pin brackets)
• 45″ inside frame
• 40.5″ wide gate
• 95″ overall height

SHIPPING & SUPPORT

This product ships directly from Lakeland Farm and Ranch U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and accessories?
Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
