Livestock Gates - Priefert Premier Cutter Bow Gate - Priefert

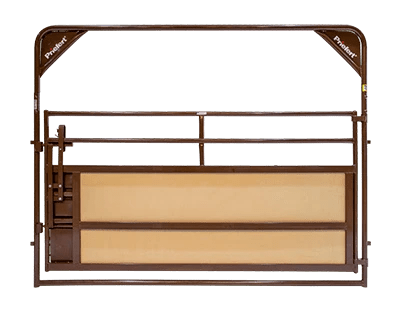

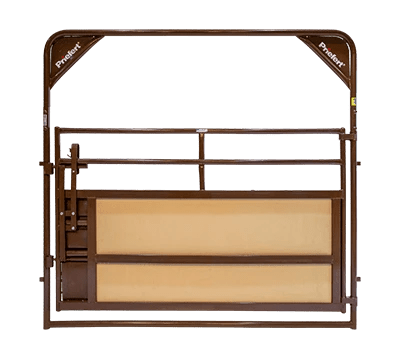

Priefert Premier Cutter Bow Gate

Model # PCBG069
Manufactured by Priefert
$1,153.00 - $1,266.00
$1,153.00
$1,153.00 - $1,266.00
$1,153.00

Authorized Dealer

Iron Herd is an authorized Priefert dealer, ensuring quality and full manufacturer support.

Gate Width: 6’

Freight Shipping

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (302) 272-9814

Designed to work in conjunction with Priefert Cutter Panels, our Premier Cutter Bow Gates are available in three widths. Each Bow Gate features a Slam-lock Lever Latch with a gravity safety latch to prevent accidental opening. The 9’ tall bow frame provides easy “ride thru” access and is constructed from 2.38” OD heavy gauge steel. These gates attach to our Cutter Panels with simple pin connectors. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.

FEATURES

  • Premier Cutter Bow Gates are designed to be utilized with Priefert Cutter Panels and feature sheeted bottoms.
  • Each gate is sheeted to a height of 50” above the ground with durable 3/8” poly.
  • Metal sheeted protects the back side of the lever latch.
  • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
  • With 9’ tall frames, these gates provide easy “ride thru” access to arenas, holding pens, and lanes.
  • Premier Cutter Bow Gates feature a Slam-lock Lever Latch. This latch includes a gravity safety latch to prevent accidental opening.
  • Premier Cutter Bow Gates require Rough Stock Connector Posts for connection to additional components. These utilize sturdy pin connectors that are designed for crowding applications and allow for quick and secure connections.

SPECIFICATIONS

  • Bow Frame hinge post constructed from 2.38” OD 8 gauge tubing, latch post constructed from 2.38” 11 gauge tubing
  • Double Piston Slam-lock Lever Latch with a gravity safety latch to prevent accidental opening
  • When gate is properly installed, poly sheeting extends to 50” above the ground
  • Color: Brown Powder Coat / Tan Poly
  • All weights are approximate
  • Bow Gate rails constructed from 2” OD 16 gauge tubing, stays and end posts constructed from 2” OD 14 gauge tubing
  • Poly Thickness: 3/8 in
  • Architectural Grade Powder Coat Finish
  • Stated Widths are measured center of connector post to center of connector post (Connector Posts sold separately)
Item Number Gate Height Gate Width Weight (lbs)
PCBG069 9' 6' 283
PCBG109 9' 10' 392
PCBG129 9' 12' 454



SHIPPING & SUPPORT

This product ships directly from Priefert U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and accessories?
Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
