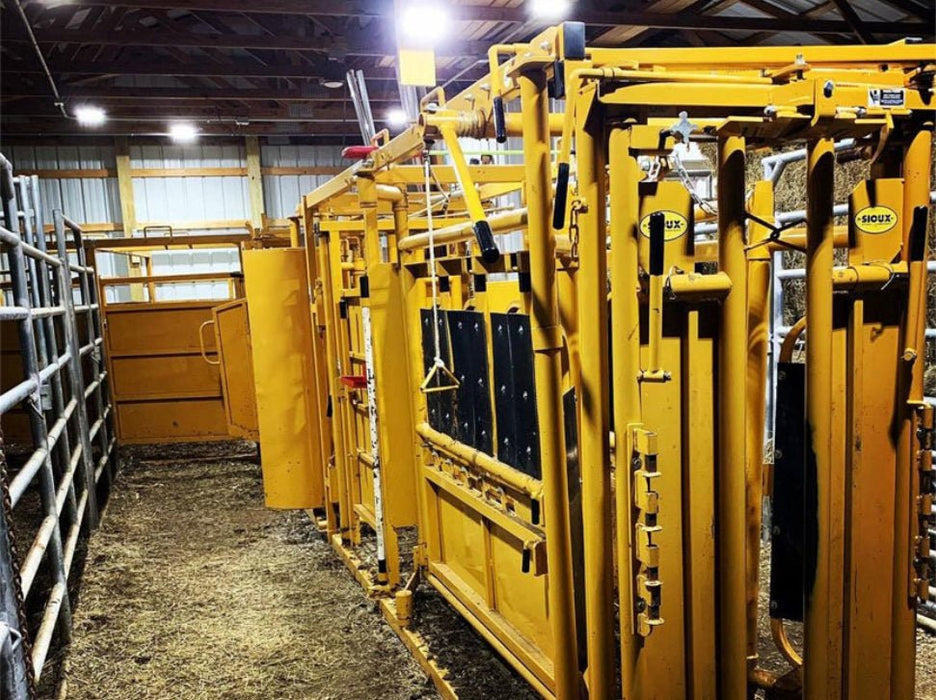

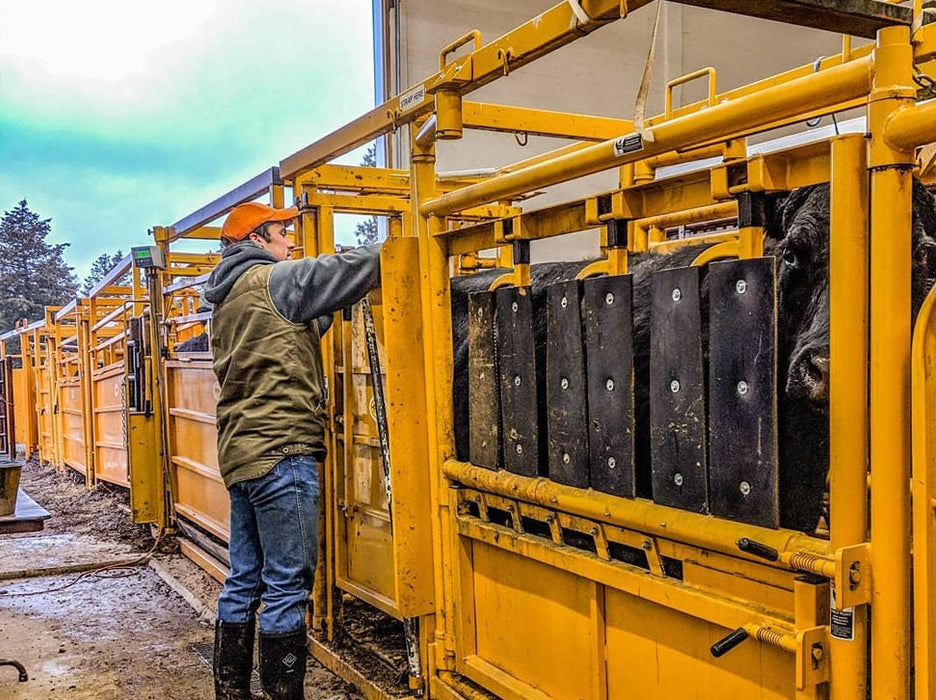

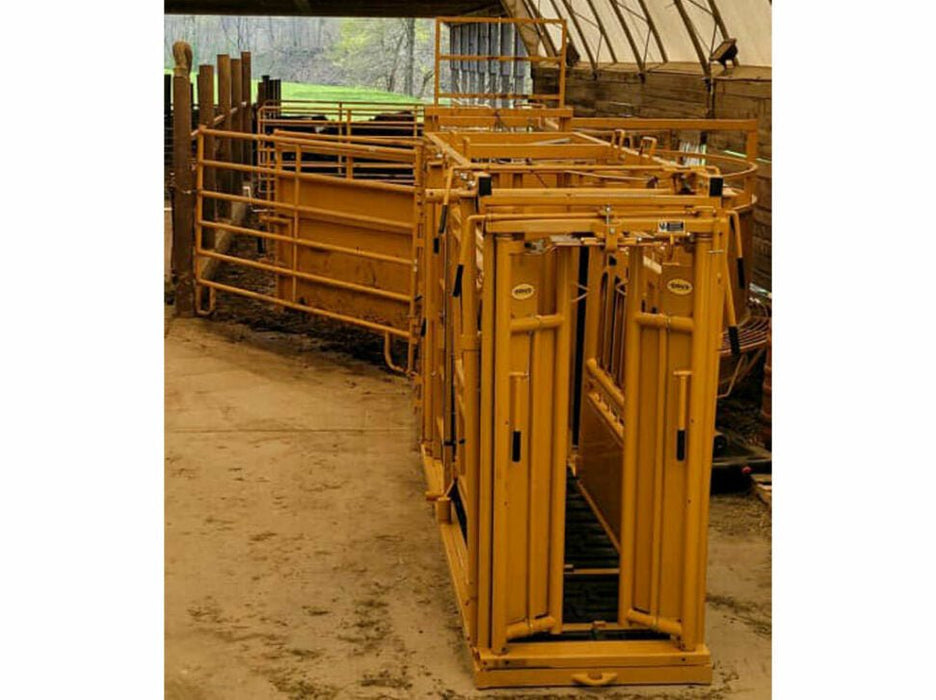

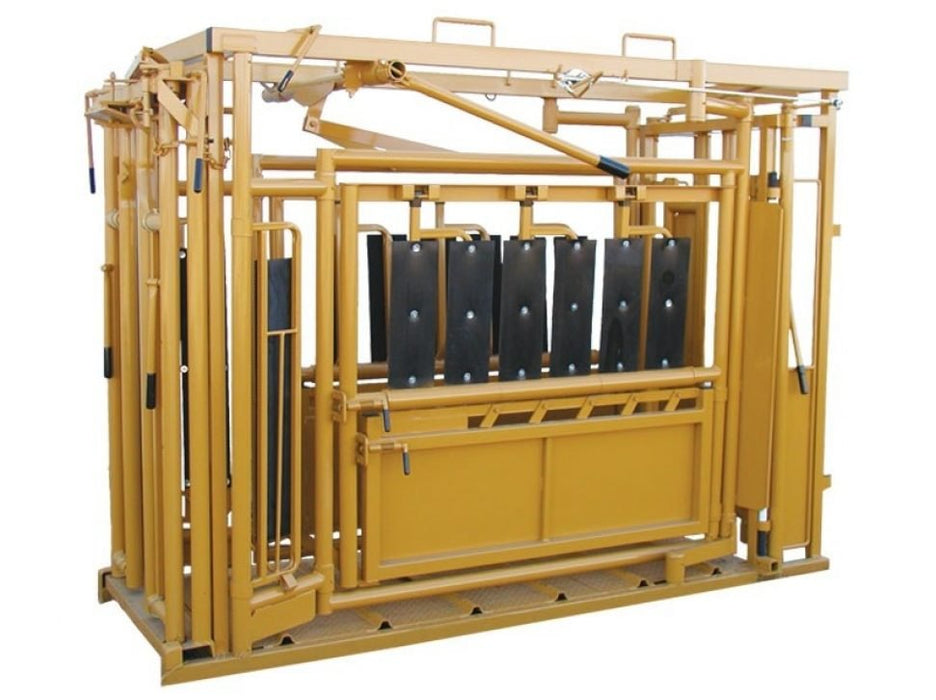

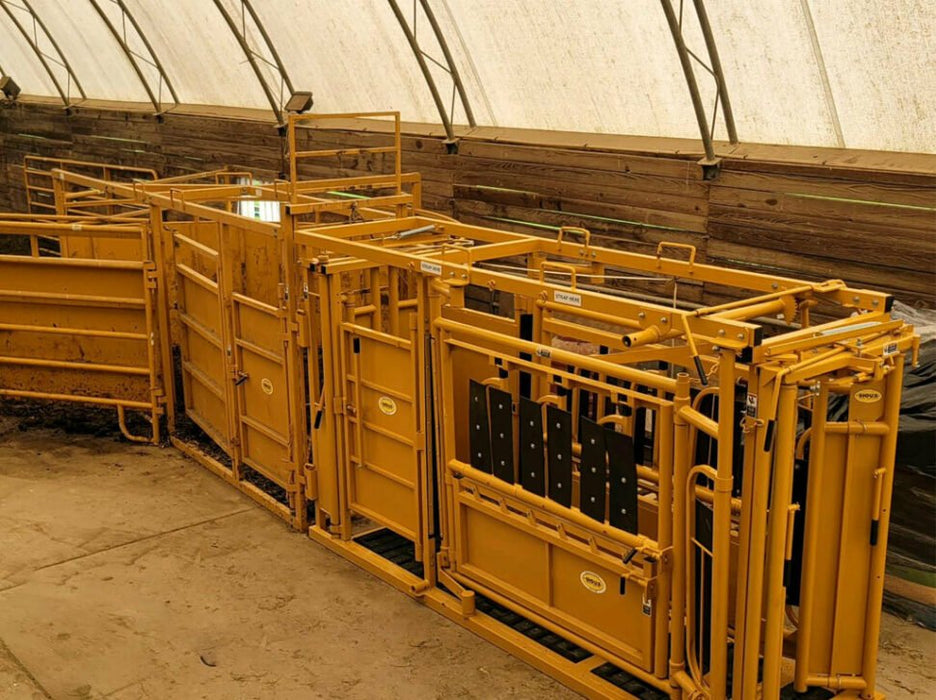

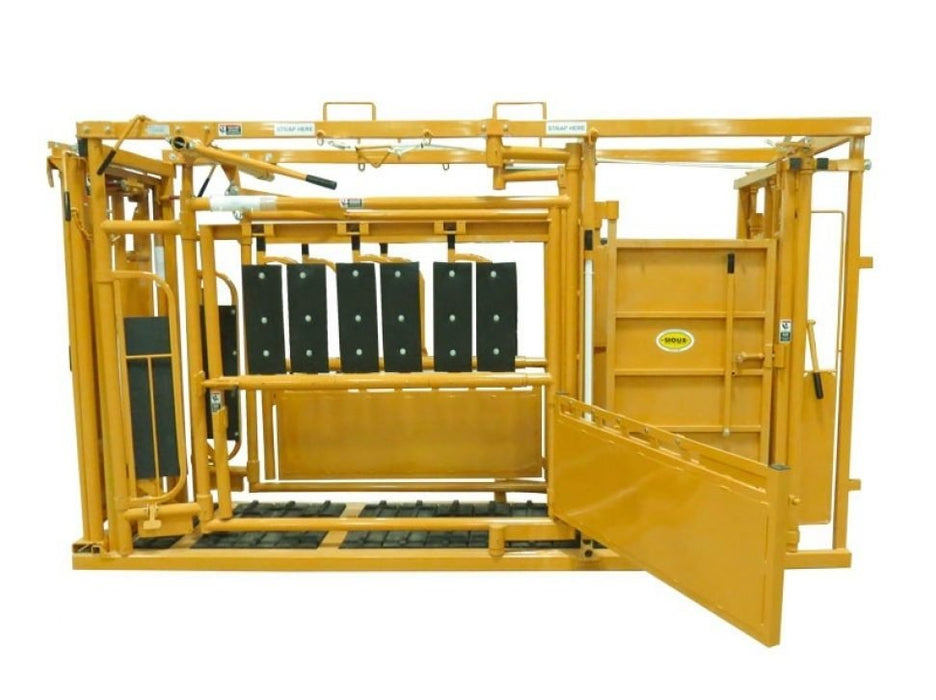

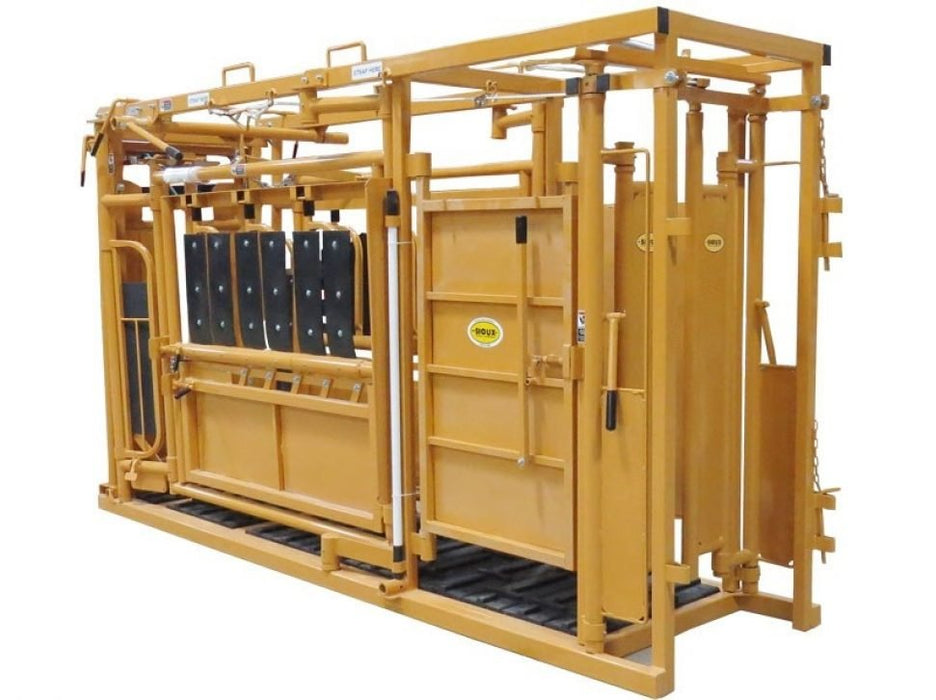

The Sioux Steel Squeeze Chute with Automatic Head Gate is a rugged, well‑equipped cattle handling system designed to handle everything from small calves to full‑grown bulls. Featuring Sioux Steel’s signature quality, this chute streamlines your livestock operations with intuitive, safe, and efficient controls.

FEATURES

• Both sides of the cattle chute open all of the way and have slam latched designed panels. Features one of the largest injection doors on the market.
• Rear vertical slide gate can be on either end of palpation cage. Progressive bar will slide up as the animal moves forward.
• The back tailgate folds on itself and gets completely out of the way. Drop down doors have blinders on them to keep the animal focused. Drop down doors on the side go all the way down.
• Foot pedal opening on palp door release giving operators a hands-free opening.

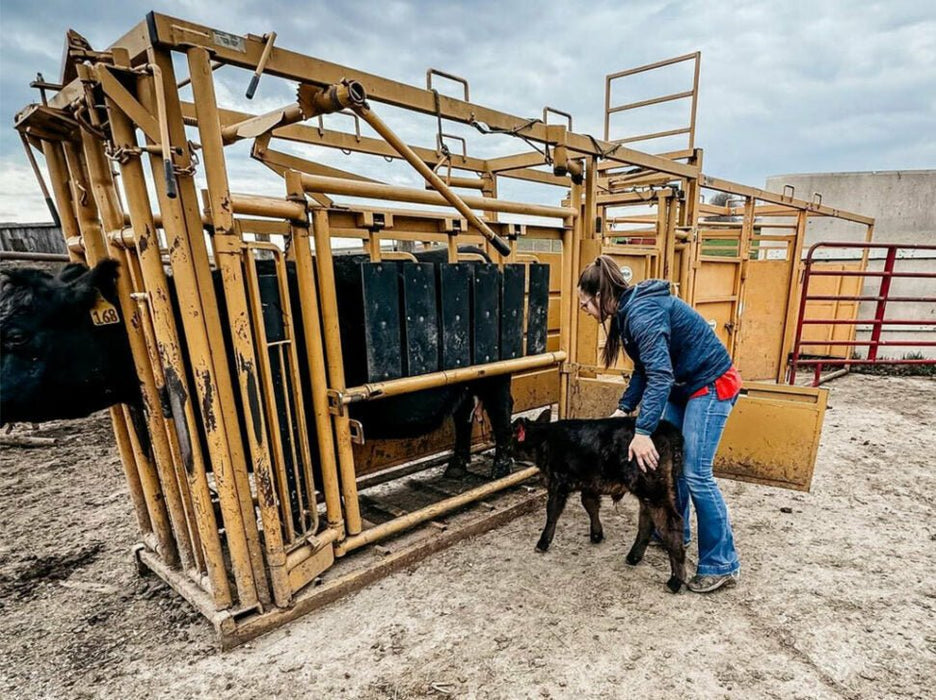

• Controls can be mounted and run from either side depending on your operation. Lower side doors do not have to be removed and taken out when nursing a calf. Squeeze lever swings away allowing the side of the chute to open even when squeezed down.
• The squeeze chute has a denser, heavier floor that features molded cleats that keep animal's hoofs from sliding front to rear and side to side. Molded cleats won't rust and wear out resulting in longer equipment life.
• Now available with palp cage doors that are bolted on and can moved to open in opposite direction! (Squeeze Chute model S191440LH)

Simple Operation Cattle Chute

• One lever for squeeze
• One lever for squeeze release
• One lever for head gate release
• One rope for rear vertical gate


8 Year Warranty

If this squeeze cattle chute is ever damaged so that it cannot be used for its intended purpose, we will repair or replace at no charge to you, our customer.

SPECIFICATIONS

• 84” tall x 38” wide x 12’ long
• 9’ squeeze chute
• 3’ palpation cage
• 29” inside squeeze chute width (squeezes to 12”)
• 40 grease zerks
• All panels are a slam latch design

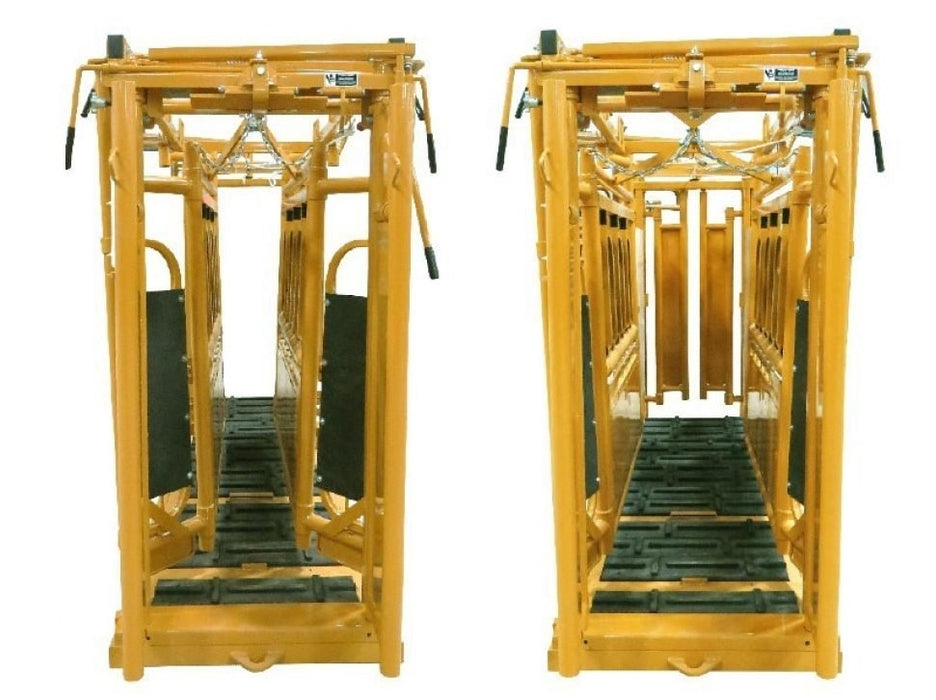

• Both sides open completely
• Cattle chute controls can be mounted & ran from either side of your operation
• Cleated rubber flooring features a lifetime warranty!


SHIPPING & SUPPORT

This product ships directly from Sioux Steel Company U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and accessories?
Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
