Cattle Chutes - Sioux Steel Squeeze Chute – No Palp Cage - Sioux Steel

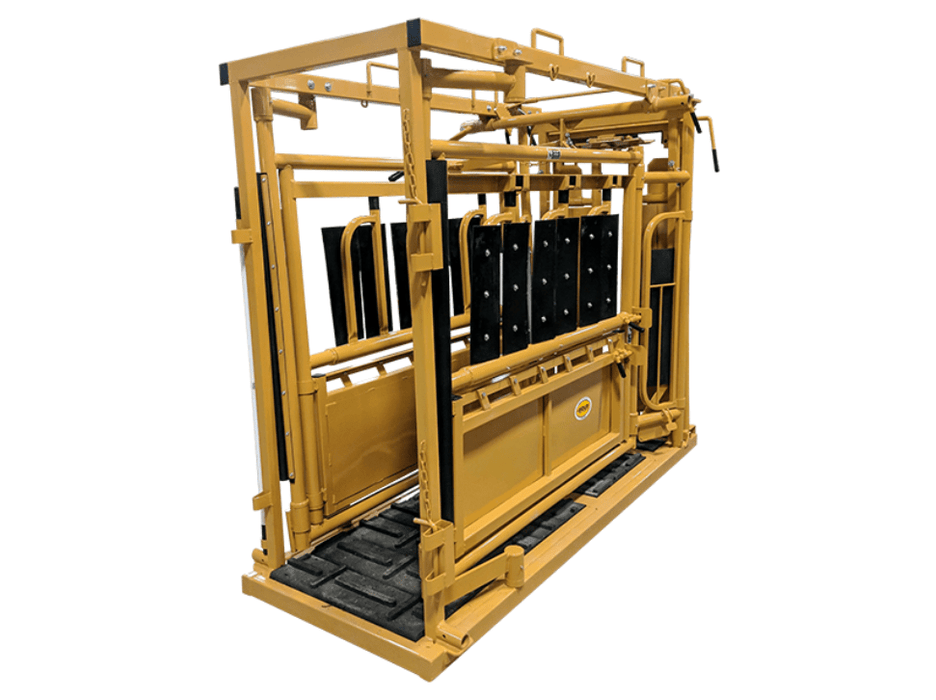

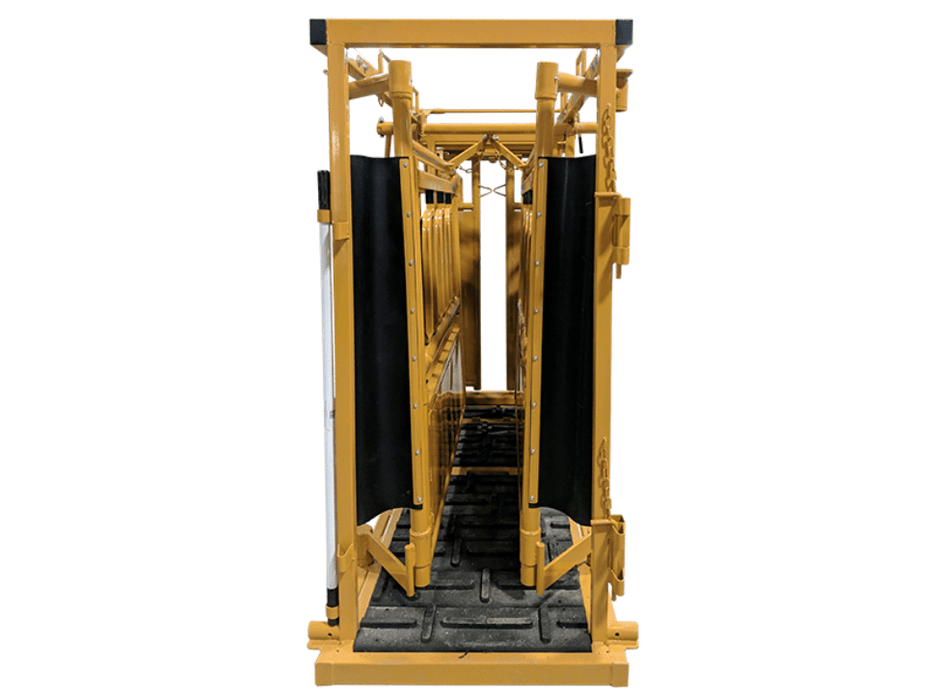

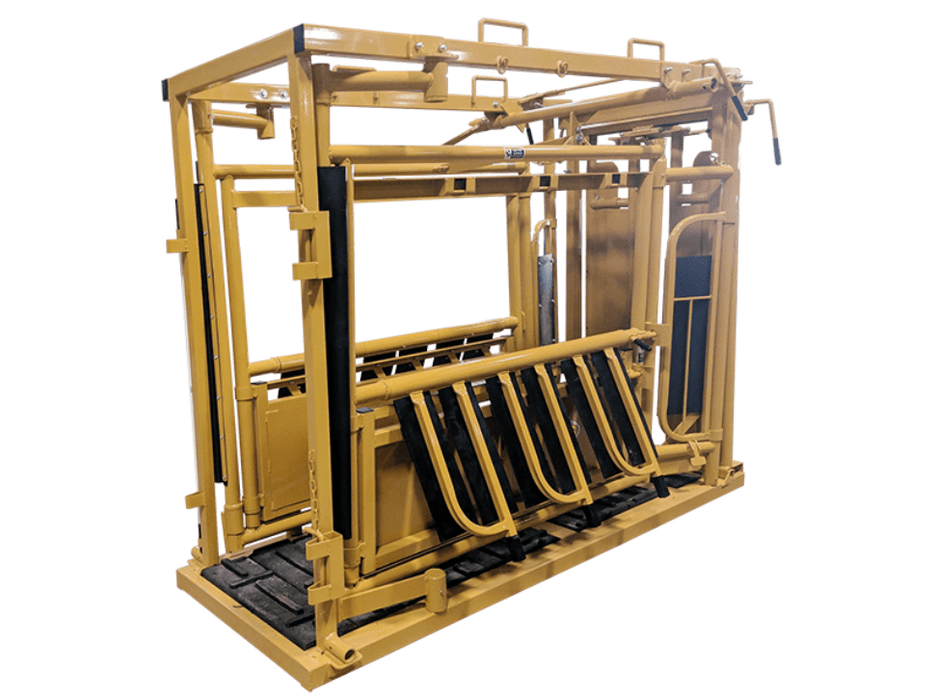

Sioux Steel Squeeze Chute – No Palp Cage

Model # S202535MLHPG
Manufactured by Sioux Steel
$8,065.00 - $8,065.00
$8,065.00
$8,065.00 - $8,065.00
$8,065.00

Authorized Dealer

Iron Herd is an authorized Sioux Steel dealer, ensuring quality and full manufacturer support.

Option: With Manual Head Gate (Left Handed)

Freight Shipping

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (302) 272-9814

The Sioux Steel Squeeze Chute – No Palp Cage is a streamlined cattle handling solution designed for ranchers seeking a compact, durable, and efficient chute without the added length of a palpation cage. Ideal for operations with limited space or specific handling needs, it retains Sioux Steel’s renowned safety and quality in a simplified design.

FEATURES

  • Short chute includes an extra butt bar slot to more easily work cattle.
  • Both sides open all of the way and have slam latched designed panels. Features one of the largest injection doors on the market.
  • The back tailgate folds on itself and gets completely out of the way. Drop down doors have blinders on them to keep the animal focused. Drop down doors on the side go all the way down.
  • Controls can be mounted and run from either side depending on your operation. Lower side doors do not have to be removed and taken out when nursing a calf. Squeeze lever swings away allowing the side of the chute to open even when squeezed down.
  • The squeeze chute has a denser, heavier floor that features molded cleats that keep animal's hoofs from sliding front to rear and side to side. Molded cleats won't rust and wear out resulting in longer equipment life.

Simple Operation

  • One lever for squeeze
  • One lever for squeeze release
  • One lever for head gate release
  • One rope for rear vertical gate

8 Year Warranty

If this squeeze chute is ever damaged so that it cannot be used for its intended purpose, we will repair or replace at no charge to you, our customer.

SPECIFICATIONS

  • 84” tall x 38” wide x 12’ long
  • 9’ squeeze chute
  • 29” inside squeeze chute width (squeezes to 12”)
  • Squeeze chute system minus the palp cage & slick door option
  • All panels are a slam latch design
  • Both sides open completely
  • Controls can be mounted & ran from either side of your operation
  • Cleated rubber flooring features a lifetime warranty!
SKU (Product #) Description Weight
S202535AHPG Squeeze Chute with Auto Head Gate and Cleated Rubber Chute Floor 1485 lbs.
S202535MLHPG Squeeze Chute with Left Handed Manual Head Gate and Cleated Rubber Chute Floor 1553 lbs.
S202535MRHPG Squeeze Chute with Right Handed Manual Head Gate and Cleated Rubber Chute Floor 1553 lbs.



SHIPPING & SUPPORT

This product ships directly from Sioux Steel Company U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right model and accessories?
Contact us at sales@ironherdequipment.com or give us a call (302) 272-9814— our team is here to help.
